Azure Synapse for Manufacturing Industry – Remote Monitoring

Azure Synapse Analytics is a powerful cloud-based service for big data analytics and enterprise data warehousing. It integrates data ingestion, preparation, management, and analytics into a single platform.


Workflow

  1. Data Ingestion: Use Azure Data Factory or Synapse Pipelines to import data from various sources:
    like on-premises SQL databases, Azure SQL Database or Cosmos DB, external APIs, Azure Event Hubs or IoT Hub.
  2. Data Transformation: Use T-SQL-based Synapse Serverless Pools for ad hoc queries on large datasets without provisioning or use Synapse Spark to clean raw data.
  3. Data Warehousing: Structured data is stored in a dedicated SQL pool.
  4. Real-Time Analytics: Stream data is merged with historical data for insights.
  5. Insights and Action:
    • Use Power BI, React, Angular or HTML UI application to display interactive dashboards..
    • Alerts trigger actions like notifications, alerts etc.

Key Benefits –

  1. Scalability: Handle huge data(tb, pb) seamlessly.
  2. Performance: Fast queries using distributed processing.
  3. Integration: Unified platform for data engineering, warehousing, and analytics.
  4. Real-Time Insights: Immediate actions on live data streams.
  5. Cost-Effective: Serverless options reduce costs for ad hoc analytics.

Use case : Manufacturing Industry – Remote Monitoring

Scenario – A manufacturing company wants to monitor its production facilities and equipment in real time to:

  1. Optimize equipment performance.
  2. Predict and prevent downtime using IoT sensor data.
  3. Monitor energy consumption and improve efficiency.
  4. Analyze historical trends for maintenance planning.

Implementation Using Azure Synapse Analytics

Architecture

  1. Data Sources:
    • IoT Sensors: Collect data from factory equipment or machines (e.g., temperature, vibration, pressure, energy usage).
    • Operational Systems: Gather data from ERP systems or manufacturing execution systems (MES).
    • External Data: Integrate weather or market trend data for operational planning. (Outside temperature)
  2. Data Ingestion:
    • Use Azure IoT Hub to ingest real-time IoT sensor data.
    • Use Azure Data Factory to batch ingest data from ERP or MES systems.
  3. Data Storage:
    • Azure Data Lake Storage Gen2 for raw and semi-processed data.
    • Azure Synapse Dedicated SQL Pool for structured data and analytics.
  4. Data Processing:
    • Synapse Spark Pools or TSQL for big data processing (cleaning and aggregating IoT data).
    • Synapse Pipelines for ETL workflows and transformations.
  5. Advanced Analytics:
    • Use Azure Machine Learning integrated with Synapse to create predictive maintenance models.
    • Forecast potential equipment failures or energy consumption.
  6. Visualization:
    • Use Power BI or React or Angular dashboards for real-time insights into equipment performance, downtime alerts, and fault detection metrics.

Implementation Details

Step 1: Ingest Real-Time IoT Data

  • Set up an Azure IoT Hub to connect IoT sensors on manufacturing equipment.
  • Stream data to Azure Event Hubs.
  • Use Synapse Streaming or Spark to process incoming data.

Example: Process vibration data to identify potential motor failures:


Step 2: Store and Process Data

  • Use Azure Data Lake Storage Gen2 to store raw IoT sensor data.
  • Use Synapse SQL Pools to create a structured data warehouse.

Example Schema:

  • Fact Table: Sensor Readings (timestamp, device_id, temperature, vibration)
  • Dimension Tables: Equipment, Factory Locations, Time

SQL to create a table:


Step 3: Predictive Analytics

  • Train a machine learning model to predict equipment failures based on historical vibration and temperature data.
  • Deploy the model using Azure Machine Learning and integrate it into Synapse.

Example:

  1. Train the model using Azure ML.
  2. Deploy it as a web service.
  3. Call the model from Synapse –

Step 4: Visualization

  • Use Power BI or React or Angular application to display real-time dashboards with KPIs like:
    • Equipment status (normal, warning, critical).
    • Energy usage by factory location.
    • Predictive failure alerts.

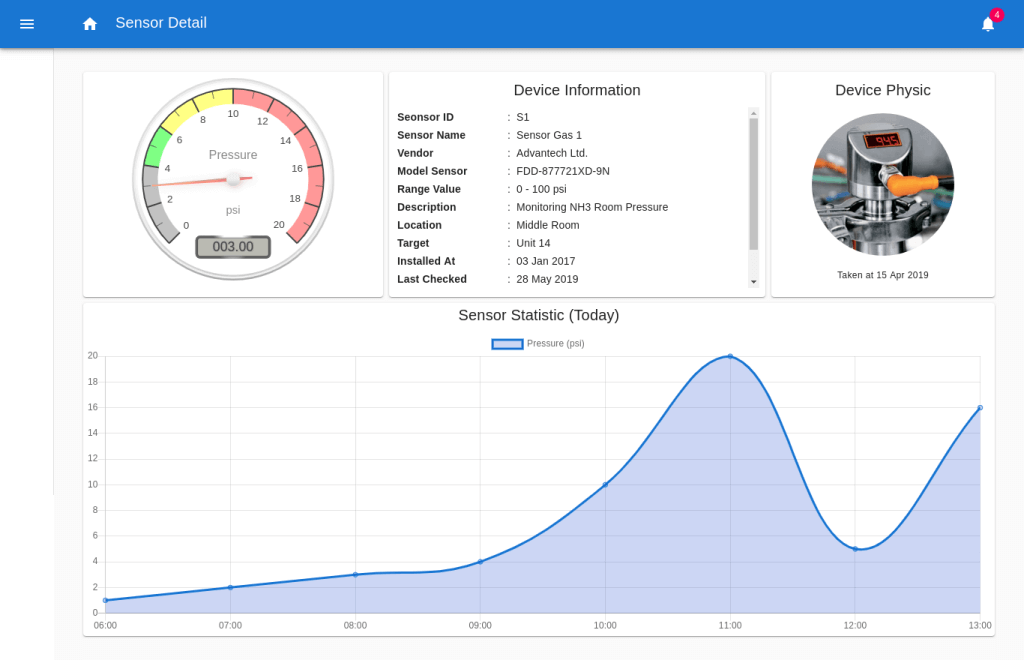

Power BI Dashboard Widgets:

  1. Real-Time Chart: Equipment vibration and temperature.
  2. Gauge Chart: Energy consumption vs. target.
  3. Map: Factory performance across geographies.

Key Benefits in Manufacturing

  1. Proactive Maintenance:
    • Use predictive analytics to schedule maintenance and avoid costly downtime.
    • Example: A motor showing abnormal vibration patterns triggers a maintenance alert.
  2. Energy Optimization:
    • Analyze energy consumption and identify inefficiencies.
    • Example: Real-time monitoring highlights machines consuming excessive energy.
  3. Enhanced Decision-Making:
    • Combine IoT data with historical trends for better planning.
    • Example: Seasonal production forecasts based on historical sales and operational data.
  4. Scalability:
    • Handle data from thousands of sensors and multiple factories globally.

Summary

  1. IoT sensors send real-time data to Azure IoT Hub.
  2. Data is ingested into Synapse via Event Hubs and stored in Data Lake.
  3. Synapse processes and analyzes data using Spark and SQL Pools.
  4. Predictive models identify potential failures.
  5. Power BI dashboards provide actionable insights.

This architecture enables manufacturers to optimize production, reduce costs, and improve overall equipment effectiveness (OEE). Let me know if you’d like detailed code examples or further explanations!
